593.00 $ Out of stock Out of stock Payment Methods:
Sold out

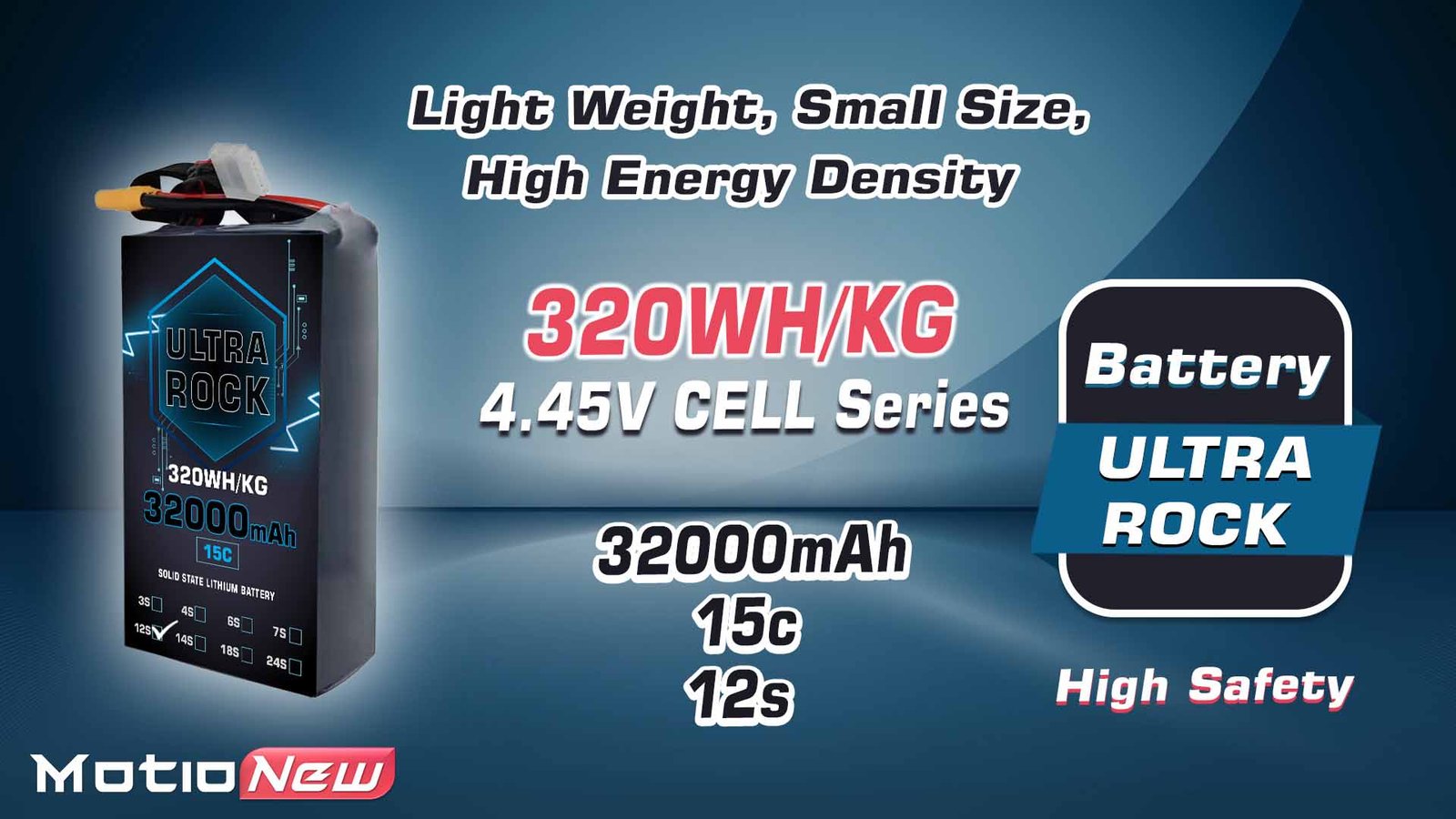

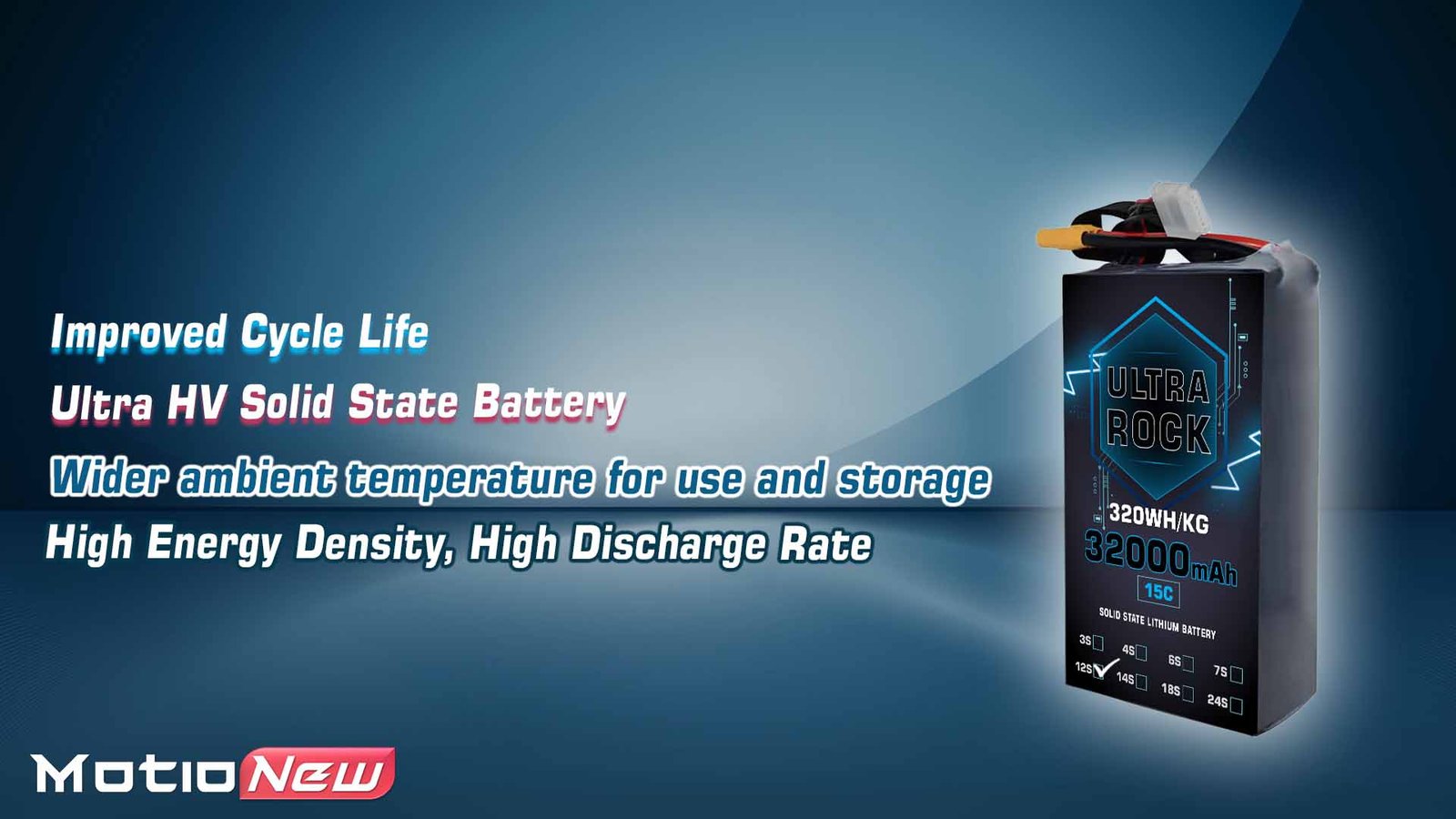

Semi Solid-State Battery | Model Ultra Rock Ultra HV battery 12s 32000mAh 320Wh/kg Energy Density 15C discharge Rate
Description
Please inform us about the connector type that best meets your needs.
We offer a wide range of batteries in various sizes and models, though some are not yet publicly listed. Please feel free to send us a message if your required model is not listed.
** All certificates and reports required for shipping and customs clearance including MSDS, UN38.3, RoHS, and DGM are available. **
semi-solid state battery products
General Specifications
Ultra HV battery 12S 32000mAh Ultra HV semi solid-state battery is only 4.9kg, with 320Wh/kg pack energy density, and Standard Current discharge rate is 5C, Continuous current discharge rate is 7C and Peak current discharge rate is 15C.
The Ultra Rock Ultra HV Semi Solid-State battery is a Semi Solid-state Li-ion battery series that has a higher discharge current and higher cell voltage compared to a normal solid-state Li-ion battery. The discharge interval of each battery cell is from 2.7v to 4.45v and the discharge rate can be up to 25C.
Advantages of battery 12s 32000mAh
Compared to traditional semi solid-state Li-ion batteries, the Ultra HV Solid-state Li-ion battery has a lightweight and higher energy density. The drone endurance time will be increased by using this model of batteries. In contrast to normal Li-ion batteries, solid-state batteries do not heat during usage even when a high current is being drawn from the battery. They are more resilient to shocks and hits.
Battery 12s 32000mAh applications
Ultra HV Solid-state Li-ion battery is suitable for most UAVs or other electrical equipment that requires a long endurance time: Agriculture drones, Industrial multi-copters, VTOLs, Robots, Surface ships, etc.
e reading of related products, please visit the Motionew website.
FAQ
1. What are the specifications of this battery?
This model has a 12S configuration, 32000mAh capacity, and weighs only 4.9 kg. It delivers an energy density of 320 Wh/kg, with discharge rates of 5C (standard), 7C (continuous), and up to 15C (peak). Under certain conditions, it can reach 25C discharge.
2. What is the operating voltage range of the cells?
Each cell operates from 2.7V to 4.45V, providing stability and high efficiency across the discharge cycle.
3. What advantages does it have compared to conventional Li-ion batteries?
This semi solid-state battery offers higher energy density, lighter weight, longer endurance time for UAVs, better resistance to shocks, and minimal heating under high load.
4. What payment methods are supported?
You can pay via credit/debit cards, PayPal, and international bank transfers.
5. Is OEM customization available?
Yes. Buyers can request custom connectors, tailored capacities, and special configurations depending on drone or industrial needs.
6. Are certificates and documents provided with shipment?
Yes. Shipments include MSDS, UN38.3, RoHS, and DGM certificates, ensuring smooth international shipping and customs clearance.
Specifications
Specifications
| Voltage | Nominal: 47.4V, Full: 53.4V |
| Cell Voltage | 4.45v/cell |
| Capacity | 32000mAh |
| Standard Discharge Rate | 5C |
| Continuous Discharge Rate | 7C |
| Max./Peak Discharge Rate | 15C |
| Energy | 320Wh/kg |
| Size | 235*115*92mm |
| Weight | 4.9kg |
Product contents
Product contents

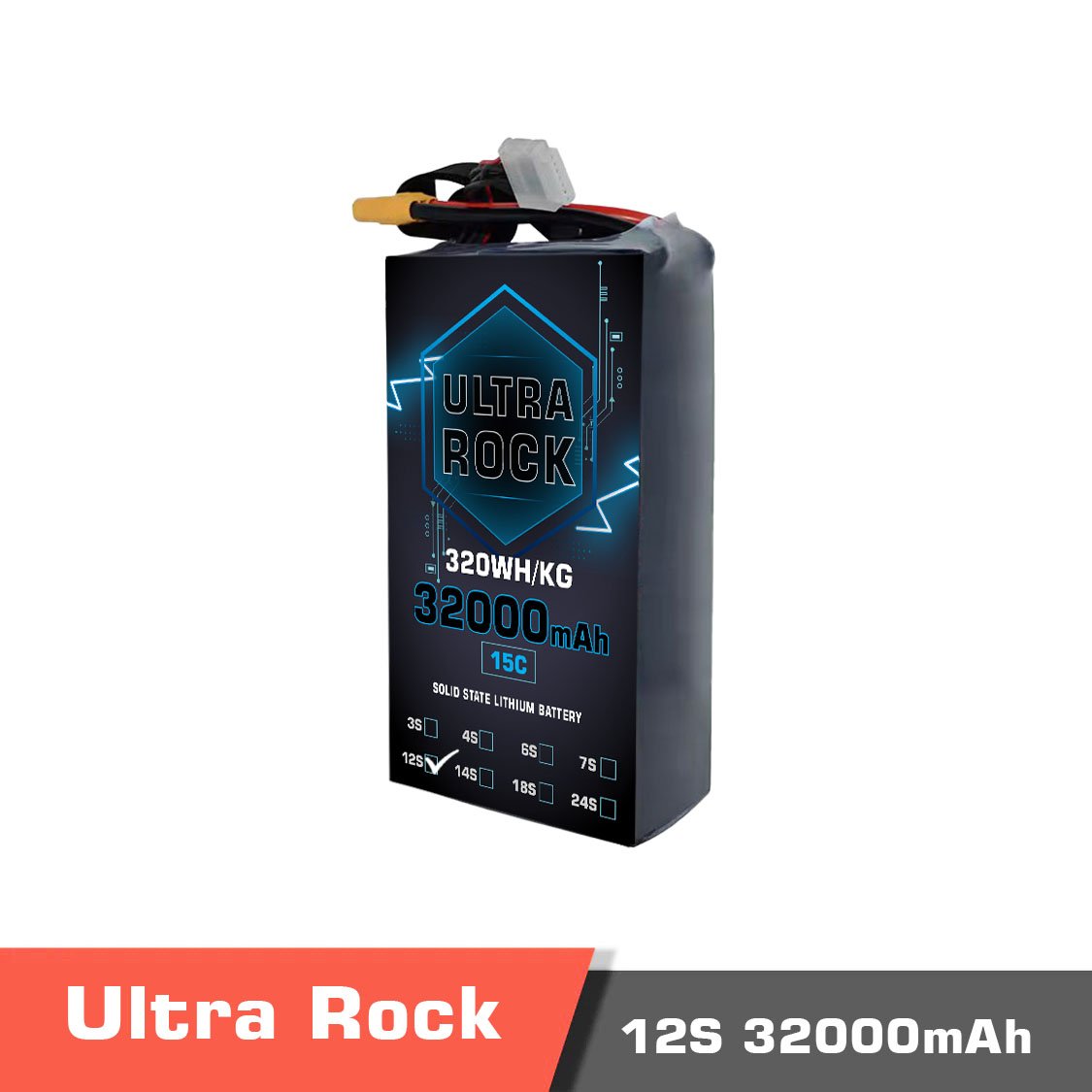

1x Ultra High Voltage Solid-state Battery 12s 32000mAh
Documents
Documents
All certificates and reports required for shipping and customs clearance including MSDS, UN38.3, RoHS, and DGM are available.
Please contact us for more information.
Reviews
You must be logged in to post a review.
| Battery cells | 12S |
|---|---|
| Battery Capacity | 32000mAh |
| Battery Energy Density | 320 Wh/kg |
| Battery Dimensions | 235*115*92mm |
| Battery Continuous C rate | 5C |
| Battery Max Peak C rate | 15C |
| Battery Type | ULiHV |
| Battery Weight | 4900g |
| Battery Nominal Voltage | 3.95v |
| Battery Full Voltage | 4.45v |
